Allyl Radical: Open-Shell DFT and Spin Density

The allyl radical, CH₂=CH–CH₂•, has one unpaired electron shared between the two terminal carbons. An unrestricted Kohn–Sham (UKS) calculation describes it with separate α and β orbitals, and the difference of their densities, the spin density, shows where the unpaired electron lives. This example optimizes the radical and draws its spin density.

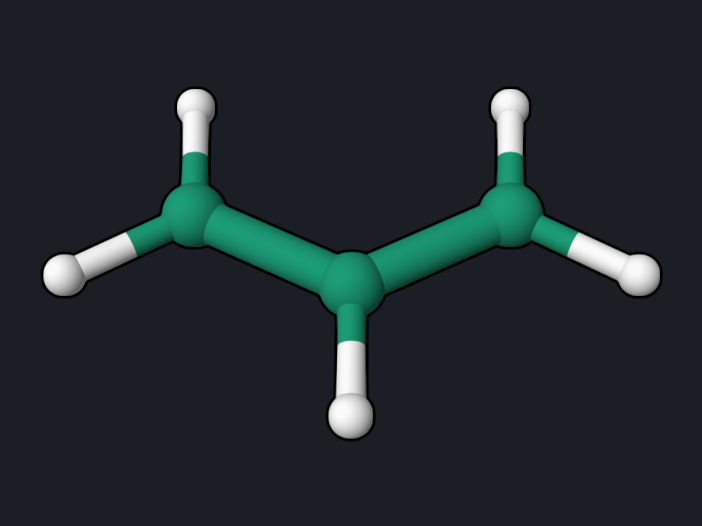

Allyl radical, C2v

Spin density (±0.005 a.u.): excess α spin on the terminal carbons (blue), excess β spin on the central carbon (red)

Copy and run

allyl-radical.oqp

uks/pbe0/6-31g* mult=2 opt
geom="""
C      0.000000     0.000000     0.479931
C      0.000000     1.227297    -0.172634
C      0.000000    -1.227297    -0.172634
H      0.000000     0.000000     1.569931
H      0.000000     1.264989    -1.251976
H      0.000000     2.143189     0.399679
H      0.000000    -2.143189     0.399679
H      0.000000    -1.264989    -1.251976
"""

Download allyl-radical.oqp

openqp allyl-radical.oqp

uks/pbe0/6-31g* selects an unrestricted Kohn–Sham reference, and mult=2 sets the doublet spin multiplicity. The starting structure is planar; the optimization keeps the C2v symmetry and converges in 6 steps, in about 10 seconds with 8 threads.

What you get

Quantity	Reference value
Final energy	−117.1066345 hartree
Point group	C2v
r(C–C)	1.384 Å (both bonds equal)
∠C–C–C	124.8°
Mulliken spin population, terminal C	+0.735 each
Mulliken spin population, central C	−0.329
⟨S²⟩ of the Kohn–Sham determinant	0.793 (exact doublet: 0.75)

The two C–C bonds are equal: the radical is delocalized, not a localized C=C double bond next to a CH₂ radical. The spin populations and ⟨S²⟩ were computed from the α and β orbitals in allyl-radical_scf_uhf_pbe0_6-31gs.molden; the same file is used to draw the spin density.

Reading the result

• The unpaired electron occupies the nonbonding π orbital of allyl, which has its density on the terminal carbons and a node at the central carbon. That is why the terminal carbons carry most of the α spin.
• The negative spin on the central carbon is spin polarization: the unpaired α electron slightly separates the α and β electrons of the doubly occupied π orbital. A restricted open-shell (ROKS) calculation cannot show this effect, because it forces the paired electrons into the same spatial orbital.
• The integrated spin density is 1.000, one unpaired electron.

Try next

• Replace uks with roks, without opt, for a restricted open-shell single point at the starting structure. The ROKS energy is −117.1007357 hartree, 5.4 millihartree (3.4 kcal/mol) above UKS at the same structure (−117.1061294 hartree, step 1 of the optimization), because the spin polarization is missing.

See also: HF and DFT, .oqp routes.
